Voltage Monitor

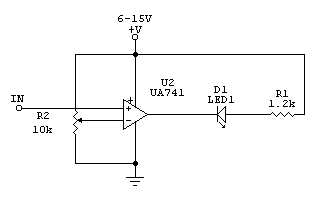

Circuit diagram

Parts
D1 LED
R1 1.2k Resistor
R2 10k Var. Resistor
U1 UA741 OP AMP

Description
When the input voltage is 0 the LED glows. The LED stops glowing when the voltage rises to the level determined by R2. Reverse + and - pins to reverse operating mode. To set voltage at which LED goes off, (1) Set 0V at input. (2) Set input voltage at desired level. (3) Adjust R2 to point right after LED goes out.

author: Paul Stilo
e-mail:
web site: http://circuitarchive.150m.com/
